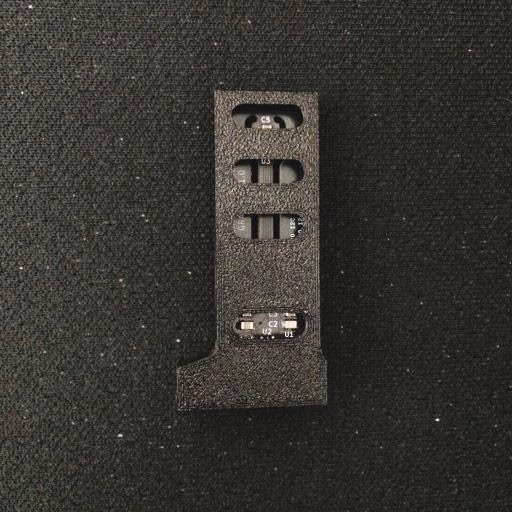

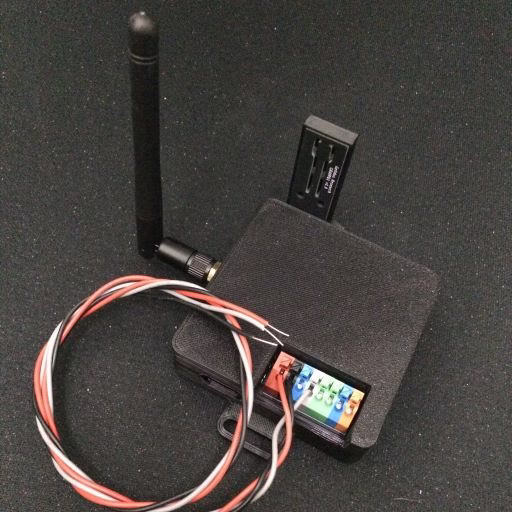

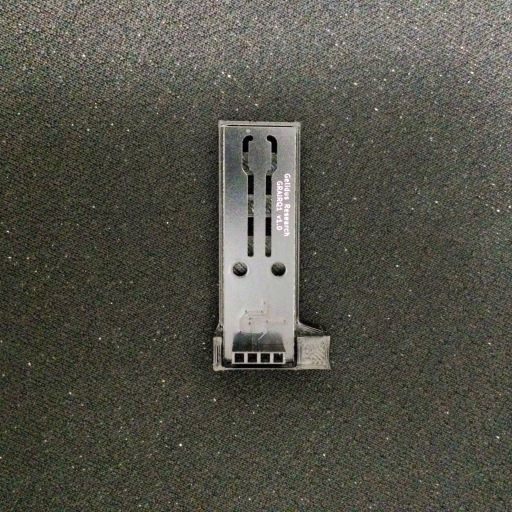

GRAIRQ1 ENS160/AHT20 Air Quality, Humidity and Temperature sensor

Description

The GRAIRQ1 ENS160/AHT20 Air Quality, Humidity and Temperature module provisions low cost environmental monitoring.  You can select from a pluggable GRGDO1 series option or a male Dupont header for DIY projects.

For configuration GRGDO1 details look for the commented ENS160/AHT20 entries in the setup guides.

ENS160 sensors initially require a self calibration. The process takes 24 hours of continuous powered on readings.

During the pre-calibrated state readings are delayed for 1 hour. After the self calibration process is completed, readings will be available after 3 minutes.

Note: With the GRGDO you cannot combine this sensor with the VL53L1X or HC-SR04 sensors, this option only works on AUX1.
