Description

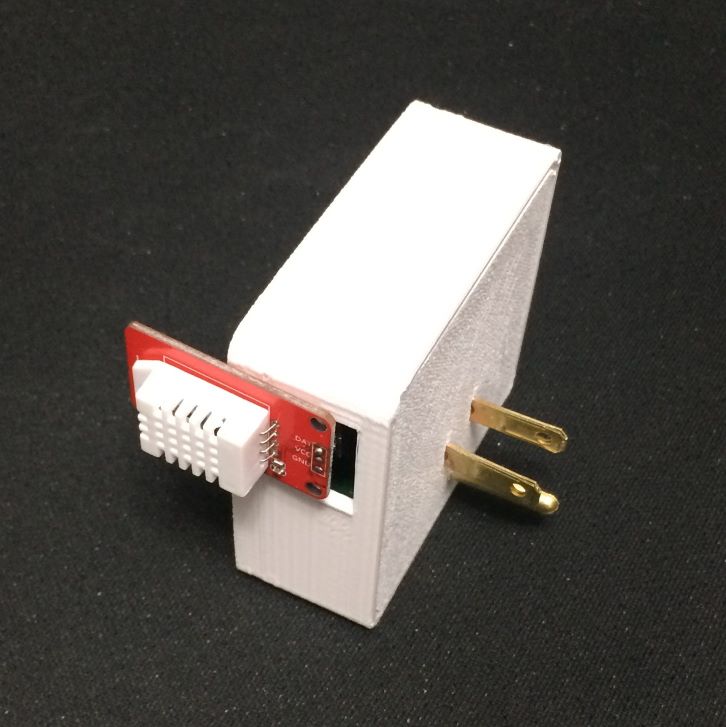

These Humidity and Temperature units come with a female header as a GRGDOx addon option. Simply plug it into the GRGDOx programing header and add some YAML to your GRGDOx ESPHome configuration.

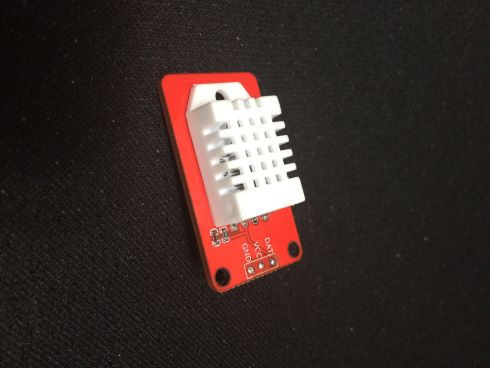

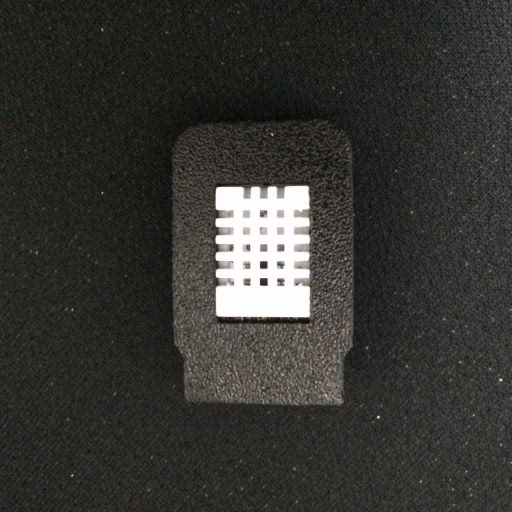

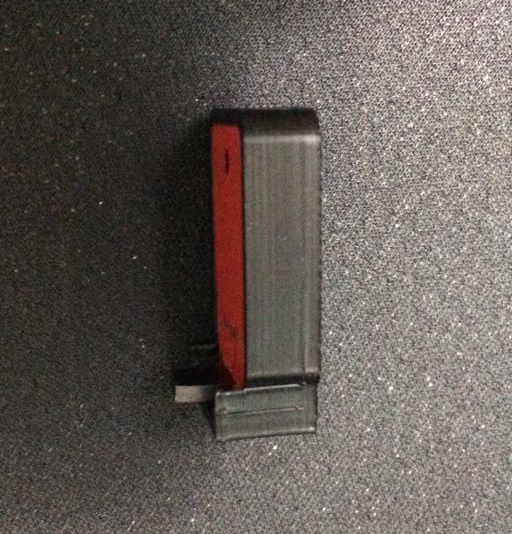

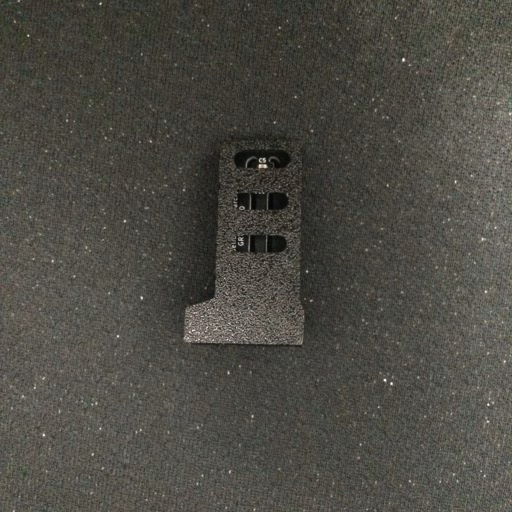

There are two options available, the DHT22 is a single wire type and will run in AUX1 or AUX2 with any GRGDOx. The AHT20 is an I2C based device with can only run on AUX1 on a v1 or v2 GRGDOx.
AHT20 provide higher accuracy without any YAML calibration, the DHT22 may require some calibration.
The latest GRGDOv3 can support it in either port.
Note: The VL53L1X ToF , AHT20 and HC-04 Ultrasound sensors require AUX1, to run both a Temperature and a distance sensor feature use the DHT22 single wire device which can run in AUX2 at the same time.
Important: Homekit Firmware only supports a DHT22.
For configuration details look for the commented YAML entries in the setup guide: GDO Setup Guide
