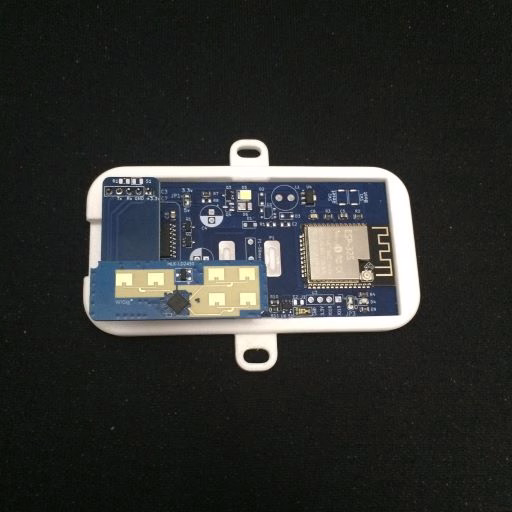

Gelidus Research mmWave Sensor Board with LD2450 module

Description

This Gelidus Research mmWave sensor board provisions:

• • Equipped with the Hi-Link HLK-LD2450 Sensor Module
  • Highly accurate object tracking occupancy detection.
  • Object detection up to 6 meters away.
  • Updated v2.4 PS1 PCB hosts a super sensitive ambient light sensor
  • OP356 op amp backed ambient sensor for super low light detection.
  • YAML lux output values are calibrated with the translucent night light radome cover.
  • 3 Zone Tracking based signal detection slots.
  • The LD2450 sensor is only available with a USB-C power option.

Note: USB-C power pack is not included.

Hardware:

• • Compact 40 x 80 mm PCB
  • USB-C based power and programming port
  • ESP32 BLE+WiFi module
  • 5 Pin socket populated with an HLK-LD2450
  • The PCB can also supports an LD2420 or LD2010C with  soldering JP1 to 3.3v/5.0v Volts.
  • Designed to insert into a 3D printed protective Radome housing.
  • Print your own or add on a 3D case printed case.

Software:

The Gelidus Research mmWave sensor is designed to run on ESPHome frameworks. ESPHome integration with Home Assistant (HA) is ideal for providing a rich user interface. Adding the GRPS1.AC to ESPHome and HA is easy using the preinstalled captive portal. Using any tablet or phone that identifies a captive portal you can link up the module without any serial firmware programming hassle’s. Once connected to your WIFI network you can interface to HA using one of the provided install guides.

Safety:

Never operate the  Gelidus Research AC powered mmWave sensor board without a protective enclosure, it will expose dangerous potential contact with your AC mains supply. We can supply a safety enclosure or you can download our 3D printable STL files for DIY projects.

USB Enclosure files:grps1.top.usb.v2 grps1.bot.usb.v2

AC Enclosure files: grhp1.case.top grhp1.case.bottom

Install Guide: https://www.esphome.io/
