Gelidus Research AC Powered RATGDO Compatible Board

$26.00

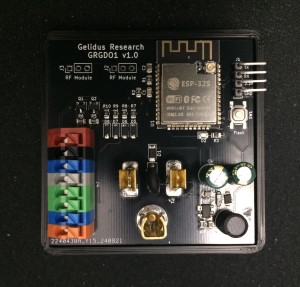

The Gelidus Research AC powered RATGDO compatible board provisions.

    • US Receptacle 120V AC supply input
    • US Receptacle Plug passthrough output
    • Integrated ESP32S BLE+WiFi module
    • Flash enable button (power cycle based)
    • 3.3v UART flashing header connector
    • 8 Pin Quick connector
    • Optional 315Mhz RF module headers (New software feature in progress)
    • Status LED

7 in stock (can be backordered)

SKU: GRGDO1-KIT Category:

Description

GRGDO1-KIT:

This Gelidus Research AC powered RATGDO compatible module:

    • Easy deployment to any available AC receptacle.
    • Occupies only one AC plug socket and provides an AC plug socket.
    • AC powered RATGDO compatible hardware with 315mhz plugin support (Feature in progress).
    • ESPHome RATGDO firmware is preloaded with the captive WEB portal.
    • Secplus GDO firmware is also available via this guide

Note: Dry Contact door openers are not supported,  Security+ Versions 1 and 2 are fully supported.

Hardware:

    • 60 x 60 mm PCB
    • 4 Pin ESP programming header (3.3v)
    • Powerful ESP32S Dual Core 240Mhz 4MB Flash, BLE and WiFi module!
    • PCB layout strictly follows ESP antenna specifications providing excellent WiFi range vs a current RATGDO layout
    • 8 Pin Quick connect
    • Flash enable button (power cycle based)
    • Powered directly with US AC plug receptacle blades (120 VAC)
    • US AC receptacle passthrough plug (120 VAC)
    • Follows UL/CSA specifications.
    • 1 Meter of 3 conductor 22 AWG bell wire

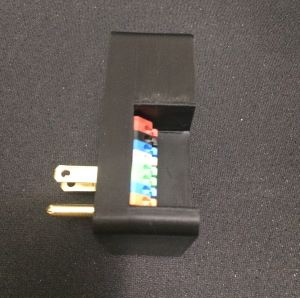

    • 3D printed protective safety enclosure.

Software:

This Gelidus Research AC powered RATGDO is designed to run on ESPHome frameworks. ESPHome integration with Home Assistant (HA) is ideal for providing a rich user interface. Adding the GRGDO1 to ESPHome and HA is easy using the preinstalled captive portal. Using any tablet or phone etc. that identifies a captive portal. You can link up the module without any serial firmware programming hassle’s. Once connected to your WIFI network it’s strait forward with HA integration.

Safety:

Never operate the  Gelidus Research AC powered GRGDO1 module board without a protective enclosure, it will expose dangerous potential contact with your AC supply. We supply a safety enclosure and you can download our 3D printable STL files as well (If printing your own please use UL94 spec’d filament). The GRGDO1 hardware design follows UL/CSA specs.

Enclosure files: grgdo1.case.top.round.v2.2 grgdo1.case.bottom.round.v2.2

Install Guide: https://www.gelidus.ca/gdo-setup-guide/
