Description
GRGDO1-KIT-2-USB-C:
Gelidus Research RATGDO board:

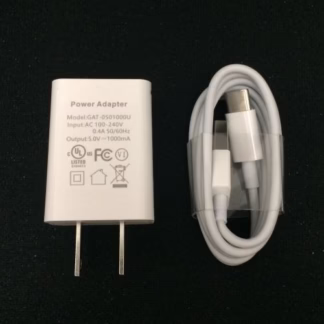

Note: This SKU requires a USB-C power source, it does not include a USB cable and Power Pack, we have an optional UL listed wall wart and cable available. UL USB-C
-
- RATGDO compatible hardware.
- ESPHome RATGDO firmware is preloaded with the captive WEB portal.
- Supports RATGDO Homekit firmware via the Gelidus Research Homekit WEB Installer.
- Secplus GDO firmware is also available via this guide.
- Best value price in the RATGDO alternative market.

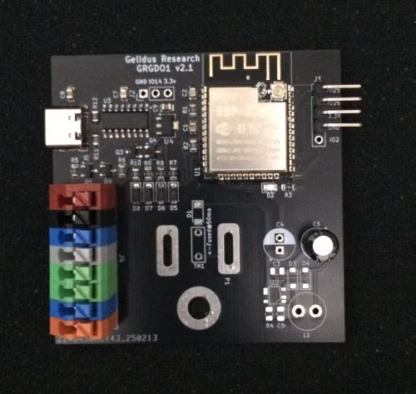

GRGDO1 RATGDO Board Hardware:
-
- 60 x 60 mm PCB
- 4 Pin Aux port header (GND, 3.3v GPIO26, GPIO25)
- 3 Pin Aux port header (GND, 3.3v GPIO14)
- Powerful ESP32S Dual Core 240Mhz 4MB Flash, BLE and WiFi module!
- PCB layout strictly follows ESP antenna specifications providing excellent WiFi range.

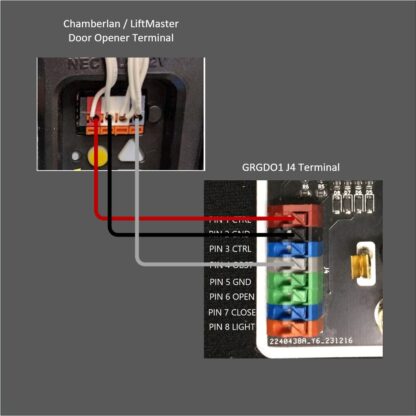

- 8 Pin Quick connect.
- CH340C based USB-C programming interface.
- 1 Meter of 3 conductor 22 AWG bell wire.
- 3D printed protective enclosure.
- Optional External Antenna – doubles the WiFi range for those fringe locations.
Software:
This Gelidus Research RATGDO is designed to run on ESPHome frameworks. ESPHome integration with Home Assistant (HA) is ideal for providing a rich user interface. Adding the GRGDO1 to ESPHome and HA is easy using the preinstalled captive portal. Using any tablet or phone etc. that identifies a captive portal. You can link up the module without any serial firmware programming hassle’s. Once connected to your WIFI network it’s strait forward with HA integration. The GRGDO1 also runs HomeKit , please refer to the GRGDO1 RATGDO Board Homekit Setup Guide. for complete details.
Install Guide: https://www.gelidus.ca/gdo-setup-guide/
Case STL files: grgdo1.case.bot.usb.v2 grgdo1.case.top.usb.v2
roland_schulz (verified owner) –
Thanks Gelidus Research for a great product at a reasonable price!
I ordered this and when I tried to set up my board, I ran into a problem setting up the firmware (which was my first ESPHome project). Mike from Gelidus research was super responsive and helped to diagnose the problem. Turned out I had gotten the board into a bad state by not following the steps (hint: you may need to set up SSL for your HA instance). Mike immediately sent me a replacement board, which worked perfectly after I got better wifi in the garage. Integration with my liftmaster opener works beautifully, and I can control the opener with Home Assistant without relying on a cloud service.
Thanks for a great product, for the great support and for standing behind your product Mike!
seanmcne (verified owner) –
These devices are a near-perfect mixture of turnkey and hobby – the documentation is top notch. The product is ready to go right out of the box and ready to hook up and it’s overseen by someone engaged and seeking continuous improvement. Highly recommend purchasing any of these devices!
I do own one of the “RATGDO Board v2 USB-C” devices, I purchased a 12v to USB-C voltage converter such that I could tap my openers 12v battery and power the RATGDO device without using the 120v power socket.
