Gelidus Research Expandable 3 Phase Power Meter Base Kit

Gelidus Research Expandable 3 Phase Power Meter Base Kit - Image 4

Gelidus Research Expandable 3 Phase Power Meter Base Kit

Price range: $88.00 through $95.00

The PM2 delivers ESPHome/Home Assistant Split Single Phase or 3 Phase power monitoring.

PM2 Hardware Features
- Fused Switched On/Off selectable 120/240V AC supply input
- AC Mains isolation supply and voltage sense transformer on main board
- Optional Individual Phase Channel Voltage References (120/240 to 6V AC optional reference transformer(s) required)
- 3 Phase expandable riser channel cards with fully routable AC voltage reference inputs to CT line matching.
- Integrated ESP32-C6 module supports Thread and WiFi on ESPHome.
- USB flashing connector
- CT Phono inputs and CT screw terms on main board (Expansion risers are CT phono only)

Clear

SKU: PM2-BASE-KIT1 Categories: ESPHome, Power Meter

Description

The Gelidus Research Expandable 3 Phase Power Meter monitors energy usage of your AC mains panel and optional circuits in real time.

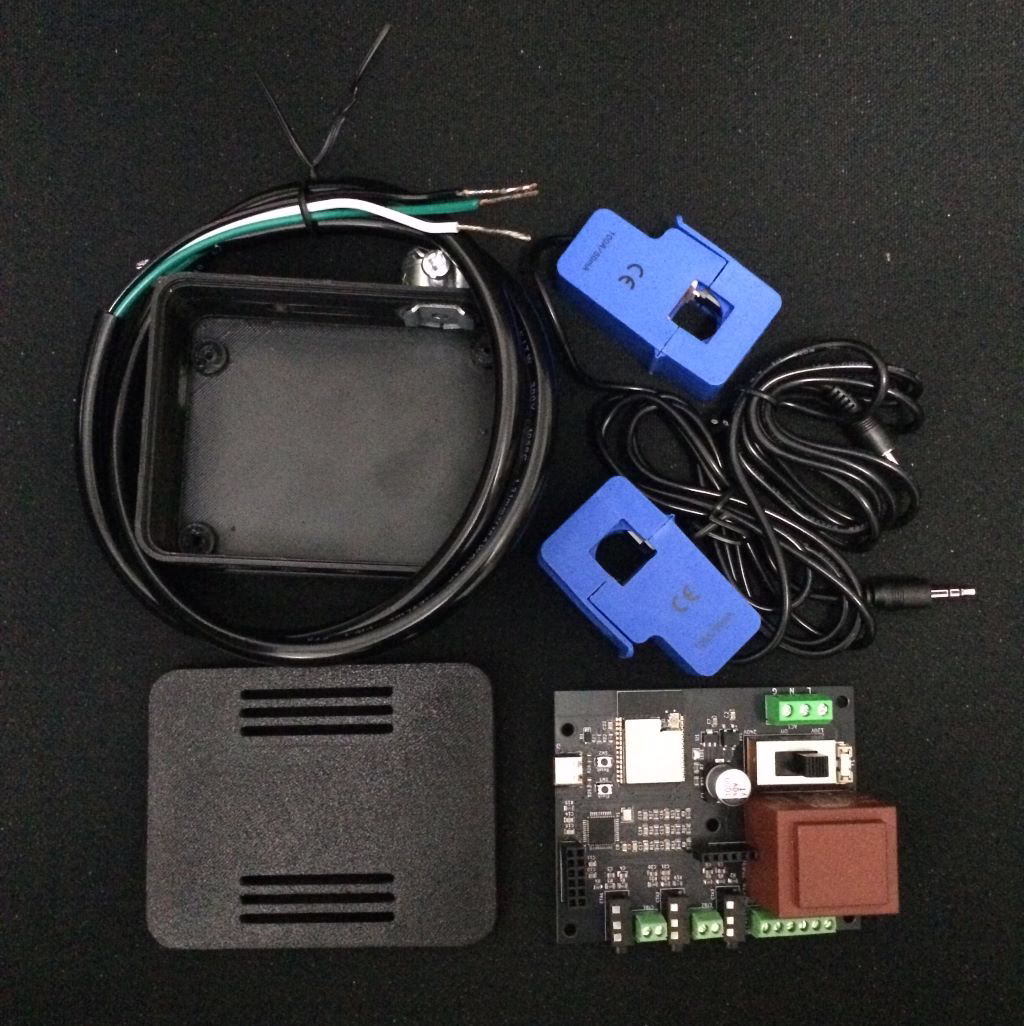

This kit includes 1 x AC Cord, 1 x Main Board with External Antenna , 1 x Riser board, 3D Printed Enclosure, 2 x 13mm Current Transformers and an AC Wire Clamp.

A total of 6 channels are available in the kit, Split Phase whole home monitoring will have 4 free channels. In 3 Phase systems 3 channels are free for additional monitoring.

This 3 Phase Power Meter provisions:

Energy usage data collection with ESPHome and Home Assistant
- View the energy usage of your entire home.
- Monitor costs of your electric appliances.
- Review and graph historical energy data.
- Monitor your Day, Hour, Week, Month, Year total Kilowatts (KWH)
- Deep insight with Active, Apparent, Harmonic Power, Phase Angle, Peek Current and Power Factor data.
- Optional Voltage Reference Transformers (VRT) and 3 channel expansion modules.
Reliable non-intrusively connected energy monitoring hardware!
- Cost effective, very accurate and pre-calibrated.
- Powerful 160Mhz dual core ESP32-C6 wireless module coupled with an ATM90E32.
- Antenna included for exceptional WiFi/Thread range.
- IEEE 802.15.4 Thread, Matter, Zigbee and Wifi 6 capable hardware.
- Works with ESPHome Wifi, BLE or Thread components.
- Powered via an AC mains isolation transformer.
- Metering is connected via non-intrusive current transformer phase line clamps.
- Completely isolated mains power supply and mains monitoring circuit connections

Software Elements:

The Gelidus Research Expandable 3 Phase Power Meter board is designed to run on ESPHome frameworks. ESPHome integration with Home Assistant (HA) is ideal for providing a rich user interface. Adding the PM2 to ESPHome and HA is easy using the preinstalled PM2 captive portal or directly with the USB-C programming port. Once connected to your WIFI network you can interface to HA using one of the provided install guides. ESPHome network connectivity is via Thread or the standard WiFi 6 mode.

Coming Soon (PM2 Install Guide: https://www.gelidus.ca/pm2-setup-guide)

Example YAML: pm2v1

Additional Info: https://esphome.io/components/sensor/atm90e32

Features:

IC: MicroChip ATM90E32
Real Time Data Sampling
- Up to 18 current channels – 20-200A per channel with the various CT’s we offer.
- Expandable from 3 to 18 channels using 3 channel stackable risers.
- 1 voltage reference integrated with the internal AC isolation transformer.
- 2 additional reference voltage inputs are configurable for high accuracy installs.
- Measurement Error: 0.5 to 1% based on the chosen CT type.
- Dynamic Range up to 6000:1 based on the chosen CT type.
- Gain Selection: Up to 4x
- Voltage Reference Drift Typical (ppm/°C): 6
- ADC Resolution (bits): 16
Data Outputs
- Voltage
- Current
- Frequency
- IC Temperature
- Active Power
- Reactive Power
- Apparent Power
- Power Factor
- Phase Angle
- Harmonic Power
- Peek Current
